"Designed to bring the same ease of use to flowsheet drawing and solution that word processors bring to the preparation of text based documents."

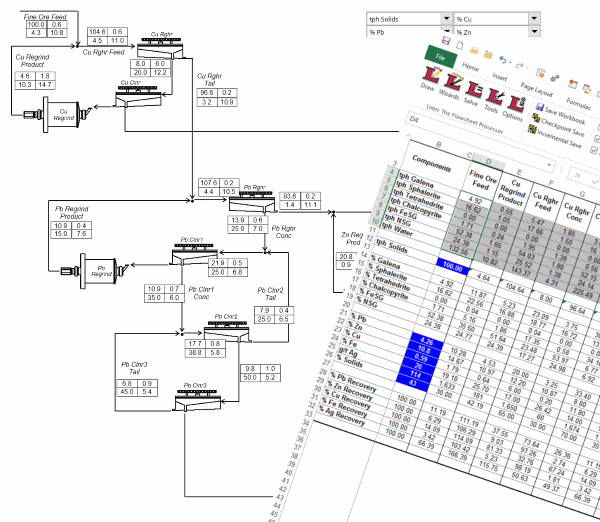

Process flowsheets built into a spreadsheet:

  • Rapid sketching of report quality flowsheets using a ‘flowsheet aware’ drawing package

  • Extensive process unit icon library

  • Block diagram option

  • Easy addition of user drawn custom icons

  • Data are stored totally within the spreadsheet - no additional files

  • All data are accessible to the user - no internal data formats

  • WYSIWIG presentation - may be used in conjunction with other tools for the Microsoft®Windows™operating system.





The flowsheet makes an ideal vehicle for:

  • Presentation of survey results

  • Communication of design data

  • Preparation of design data

  • Display of process balance data



The Limn:Solve ‘Simulation Engine’ provides:

  • Balanced flowsheet solutions using your spreadsheet models, the Limn model pack, or model packs from external sources.

    •

  • Spreadsheet based simulation (without circular references!).

  • Results of simulations saved within the spreadsheet and presented in data blocks on the flowsheet.

Add-Ins:

Limn may be further enhanced by the addition of domain specific Add-Ins:

  • WizardPack Add-On for Limn – Provides data structures and models for simulation and analysis of mineral, coal and other processing operations
  •
  • THERMO Add-In for Limn and Excel –Provides simple spreadsheet access to a chemical thermodynamics database and calculations

Limn is developed and marketed by:

David Wiseman Pty Ltd

Technical Software and Process Control Applications

ABN 19 063 231 621

PO Box 94

Blackwood  5051

South Australia



Phone/Fax:  +61 8 83702584

email: limn@davidwiseman.com.au

Limn® is an Australian registered trademark of David Wiseman Pty Ltd.

© 1995- 2005 David Wiseman Pty Ltd
